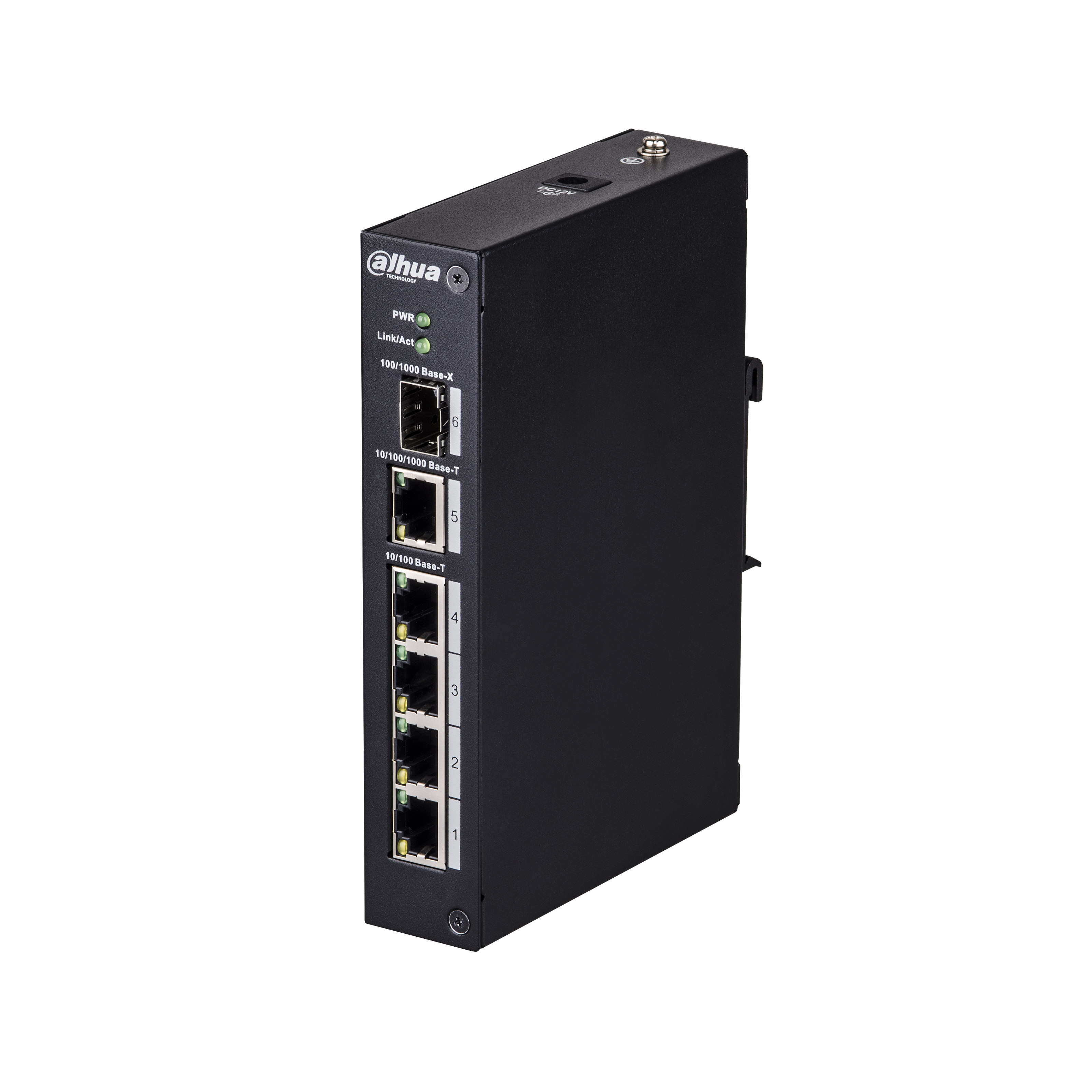

PFS3106-4T

Categories: , ,

Features:

  •  2-layer industrial level switch
  • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
  • 100M/1000M self-adaptive SFP fiber port
  • Industrial wide temperature design
Add to Enquiry List
Technical Specification
Model DH-LR2110-8ET-120
Ethernet Port 1*1000 Base-X
1*10/100/1000 Base-T
8*10/100 Base-T(PoE power supply)
PoE Power Consumption Port1,5≤60W, Port2,3,4,6,7,8≤30W, Total≤120W
PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity 8.8Gbps
Packet Forwarding Rate 4.17Mpps
Packet Buffer Memory 2.75Mb
MAC Table Size 8K
Flow Control Enable by default
Application Humidity 10%~90%
Power DC48~57V power adapter
Lightning Protection Common Mode 4KV
Differential Mode 2KV
Working Temperature ﹣30°C~65°C
Weight 0.59kg
Dimension(W×D×H) 150mm×100mm×42mm
Transmission Performance
Cable (m) Bandwidth (Mbps) PoE Load Capacity (W) Hi-PoE Load Capacity (W) Working Mode
100 100 25.5 53 IEEE/E100
200 100 25.5 33 E100
300 100 19 19 E100
400 10 17 17 E10
500 10 13 13 E10
800 10 7 7 E10
ePoE switch power supply voltage 48V
CAT5E/CAT6, max. DC resistance < 10Ω/100m
Cable (m) Bandwidth (Mbps) PoE Load Capacity (W) Hi-PoE Load Capacity (W) Working Mode
100 100 25.5 53 IEEE/E100
200 100 25.5 47 E100
300 100 25.5 32 E100
400 10 23 26 E10
500 10 20 20 E10
800 10 13 13 E10
ePoE switch power supply voltage 53V
CAT5E/CAT6, max. DC resistance < 10Ω/100m
Accessories
SFP Module Description
PFT3950 1.25G 850nm,500m,LC, Multi-mode
PFT3960 1.25G 1310/1550nm,20km,LC, Single-mode
PFT3970 1.25G 1550/1310nm,20km,LC, Single-mode
EoC (Ethernet over Coax) Description
LR1002 1*10/100 Mbps Base-TX + 1*BNC
RG59 coaxial cable:
400m/100Mbps, 1000m/10Mbps
LED Indicator
Working Mode LED Indicator
IEEE mode Normally on
E100 On for 3 seconds, off for 1 second
E10 On for 1 second, off for 1 second
