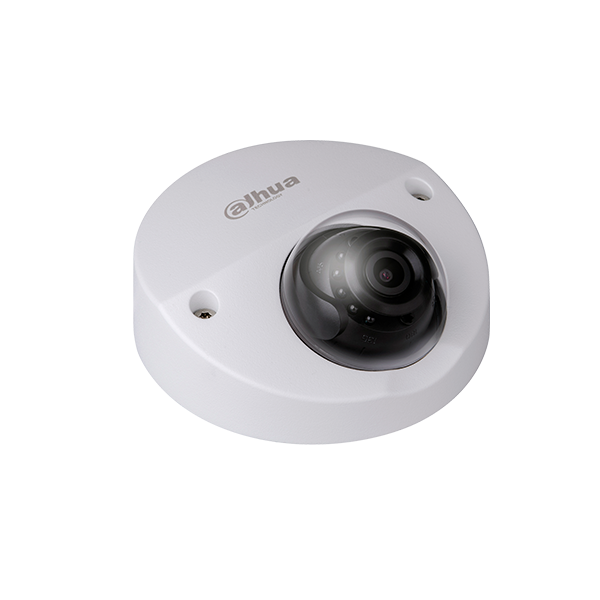

HAC-HDBW2221F

2.1MP IR Dome WDR HDCVI Camera with Mic

Features:

  • 120dB true WDR, 3DNR
  • Max 30fps@1080P
  • HD and SD output switchable
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • Max. IR length 30m, Smart IR
  • IP67, IK10, DC12V

Categories: , ,
Camera
Image Sensor 1/2.7″ CMOS
Effective Pixels 1928(H)×1088(V), 2.1MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1.3s~1/30000s

NTSC: 1s~1/30000s

Minimum Illumination 0.03Lux/F2.0, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 10
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F2.0
Angle of View H: 90° (115.6°/59.4°)
Focus Control N/A
Close Focus Distance 800mm (500mm, 1800mm)

31.50 (19.69, 70.87)

Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 60°

Tilt: 0° ~ 80°

Rotation: 0° ~ 360°

Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output

CVBS tester out

Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D / 3D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface Built-in Mic
Electrical
Power Supply 12V DC ±25%
Power Consumption Max 3.5W (12V DC, IR on)
Environmental
Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance IP67 & IK10
Construction
Casing Aluminium
Dimensions Φ106mm×50.3mm (Φ4.17″×1.98″)
Net Weight 0.30kg (0.66lb)
Gross Weight 0.45kg (0.99lb)
