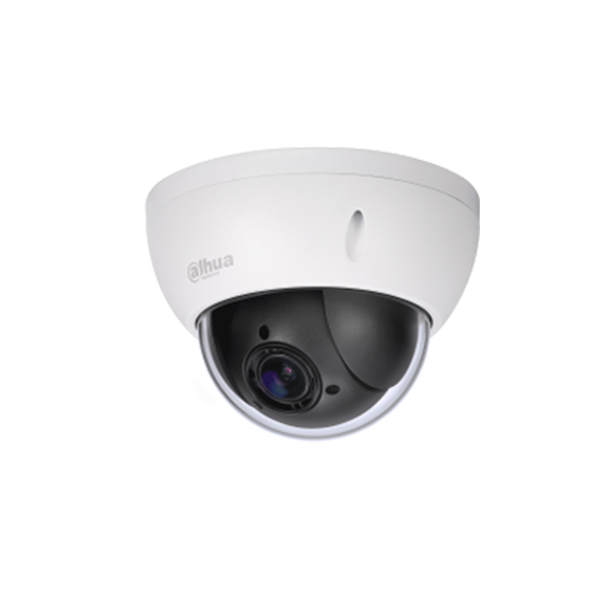

SD22204I-GC

2MP 4x PTZ HDCVI Camera

Features:

  • 1/2.7” 2Megapixel CMOS
  • Powerful 4x optical zoom
  • Max. 25/30fps@1080P, 25/30/50/60fps@720P
  • IP66, IK10

Categories: , ,
Camera
Image Sensor 1/2.7” CMOS
Effective Pixels 1944(H) x 1092(V), 2 Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/1s~1/30,000s
Minimum Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
S/N Ratio More than 55dB
IR Distance N/A
IR On/Off Control N/A
IR LEDs N/A
Lens
Focal Length 2.7mm~11mm
Max. Aperture F1.6
Angle of View H: 112.5° ~ 30°
Optical Zoom 4x
Focus Control Auto/Manual
Close Focus Distance 100mm~ 1000mm
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect Observe Recognize Identify
120m(394ft) 48m(157ft) 24m(79ft) 12m(39ft)
PTZ
Pan/Tilt Range Pan: 0° ~ 355°; Tilt: 0° ~ 90°
Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
Preset Speed Pan: 100° /s; Tilt: 60° /s
Presets 300
PTZ Mode 8 Tour, Auto Pan
Speed Setup Human-oriented focal Length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/Tour if there is no command in the specified period
Protocol DH-SD, Pelco-P/D (Auto recognition)
Video
Resolution 1080P(1920×1080)/720P(1280×720)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output/ CVBS standard definition video output (switchable)
Day/Night Auto(ICR) / Color / B/W
OSD Menu Support
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto,ATW,Indoor,Outdoor,Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Digital Zoom 16x
Flip 180°
Privacy Masking N/A
Certifications
Certifications CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface
Video Interface 1
Audio Interface N/A
RS485 1
Alarm I/O N/A
Electrical
Power Supply DC 12V/1.5A
Power Consumption 10W
Environmental
Operating Conditions -30°C ~ 60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
Construction
Casing Metal
Dimensions Φ122 (mm) x 89 (mm)
Net Weight 0.6kg(1.32lb)
Gross Weight 0.65kg(1.43lb)
