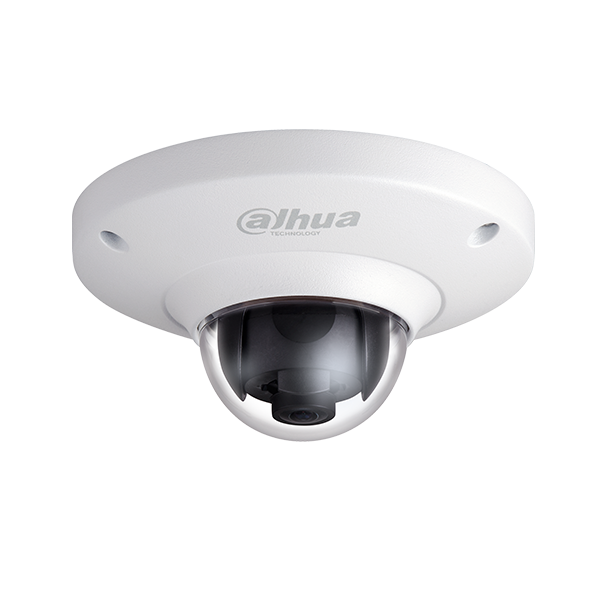

HAC-EB2401

4MP HDCVI WDR HDCVI Fisheye Dome Camera

Features:

  • 120dB True WDR, 3DNR
  • Max 4MP real-time
  • HD and SD dual-output
  • 1.18mm panoramic lens
  • IK10, DC12V

Categories: , ,
Camera
Image Sensor 1/3″ CMOS
Effective Pixels 2688(H)×1520(V), 4.1MP
Scanning System Progressive
Electronic Shutter Speed PAL:1/4s~1/100,000s

NTSC:1/3s~1/100,000s

Minimum Illumination 0.01Lux/F2.0 (Color), 0.001lux/F2.0(B/W)
S/N Ratio More than 65dB
IR Distance NA
IR On/Off Control NA
IR LEDs NA
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 1.18mm
Max Aperture F2.0
Angle of View H: 180°
Focus Control N/A
Close Focus Distance 100mm

3.94”

Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: NA

Tilt: NA

Rotation: NA

Video
Resolution 4MP (2560×1440)
Frame Rate 25fps@4MP
Video Output 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
Day/Night Auto (Electronic) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR NA
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Electrical
Power Supply 12V DC ±25%
Power Consumption Max 2.2W (12V DC)
Environmental
Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance IK10
Construction
Casing Aluminium
Dimensions φ110mm×56mm (φ4.3″×2.2″)
Net Weight 0.41kg (0.9lb)
Gross Weight 0.45kg (0.99lb)
