HFW2231S-S-S2

SKU: HFW2231S-S-S2 Categories: , , Tag:

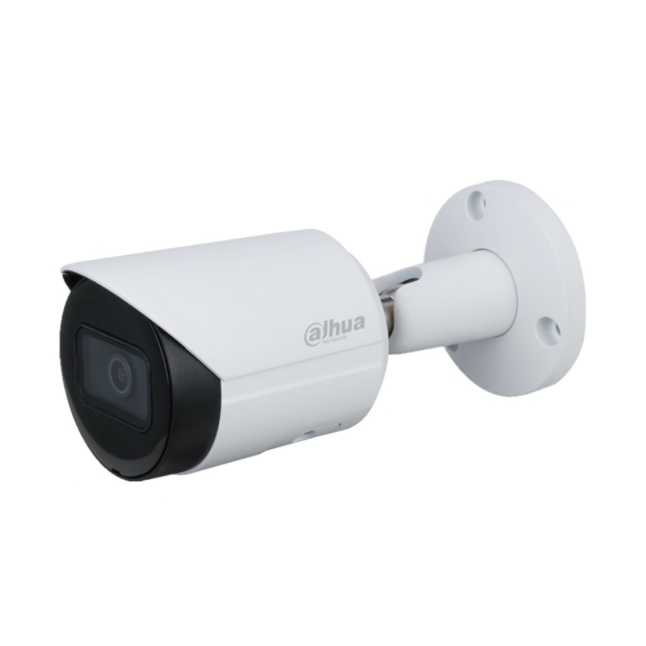

HFW2231S-S-S2 2MP WDR IR Bullet Network Camera

Features:

  • 2MP, 1/2.8″ CMOS image sensor, low illuminance, high image definition
  • Outputs max. 2MP (1920 x 1080) @ 25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, max. IR distance: 30m
  • ROI, MSART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Supports max. 256GB Micro SD Card
  • 12V DC/PoE power support
  • IP67 protection



Add to Enquiry List
HFW2231S-S-S2
2MP WDR IR Bullet Network Camera
Technical Specification
Image Sensor 1/2.8″ 2Megapixel Progressive CMOS
Effective Pixels 1920 (H)×1080 (V)
ROM 128MB
RAM 128MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.002 Lux @F1.6
IR Distance 30 m (98.4 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 1
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8m/3.6mm
Max. Aperture F1.6
Field of View 2.8mm:
Pan:106°
Tilt: 56°
Diagonal: 126°
3.6mm:
Pan:87°
Tilt: 46°
Diagonal: 104°
Iris Type Fixed aperture
Close Focus Distance 2.8 mm: 0.6 m (2.0 ft)
3.6 mm: 1.2 m (3.9 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8mm 38.6m (126.6ft) 15.4m (50.5ft) 7.7m
(25.3ft)		 3.9m
(12.8ft)
3.6mm 55.2m (181.1ft) 22.1m (72.5ft) 11.0m
(36.1ft)		 5.5m
(18.0ft)
Smart Event
General IVS Analytics Tripwire, intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec Yes
Video Frame Rate Main stream:
1920 × 1080 (1 fps-25/30 fps) Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF(352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (ROI) Yes (4 areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080presolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Network
Network RJ-45 (10/100 Base-T)
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP;RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE;802.1x; Bonjour
Interoperability ONVIF(Profile S/Profile G/Profile T);CGI; P2P;Milestone; Genetec
User/Host 20
Edge Storage Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption < 4.9W
Environment
Operating Conditions -40°C to +60°C (-40°F to 140°F) / less than ≤ 95% RH
Storage Conditions -40°C to +60°C (-40°F to 140°F)
Protection Grade IP67
Structure
Casing Metal
Dimensions 166.2 mm × Φ70 mm (6.5″ × Φ2.8″)
Net Weight 0.48Kg (1.1lb)
Gross Weight 0.57Kg (1.3lb)
