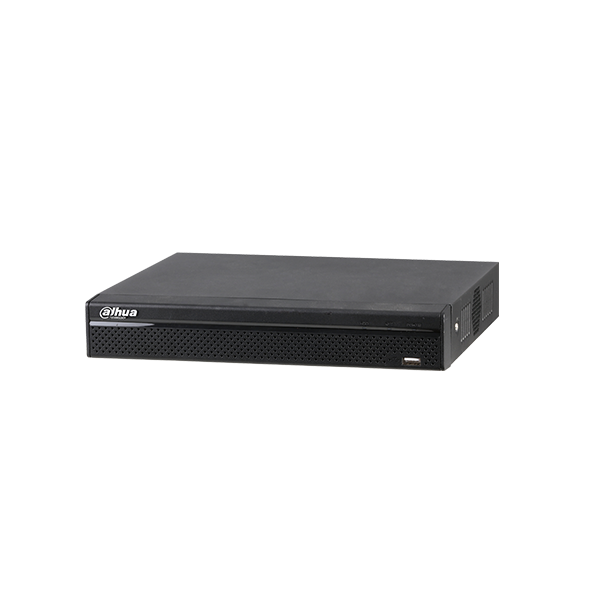

XVR5116HS

4/8/16 Channel Penta-brid 1080P Lite Compact 1U Digital Video Recorder

Features:

  • Embedded processor
  • H.264+/H.264 video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 6/12/24 channels IP camera inputs, each channel up 5MP
  • Max 24/48/96Mbps Incoming Bandwidth
  • Smart Search and Intelligent Video System

System
Main Processor Embedded Processor
Operating System Embedded LINUX
Display
Interface 1 HDMI ,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 4CH: 1/4/6

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
Alarm input N/A
Relay Output N/A
Playback and Backup
Playback 4CH: 1/4

8CH: 1/4/9

16CH: 1/4/9/16

Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 1 SATA Port, up to 8TB capacity
eSATA N/A
Auxiliary Interface
USB 4/8CH:2 USB Ports (2 USB 2.0)

16CH:2 USB Ports (1 USB 2.0,1 USB 3.0)

RS232 N/A
RS485 1 Port, for PTZ Control
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Audio and Video
HDCVI Camera Input 4/8/16 Channel
IP Camera Input 4+2/8+4/16+8 Channel, each channel up to 5MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Compression H.264+/H.264
Resolution 1080P, 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate Main Stream: 1080P(1~15fps)

1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

Sub steram:D1/CIF/QCIF(1~15fps)

Bit Rate 1Kbps ~ 6144Kbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network
Interface 4/8CH:1 RJ-45 Port (100M)

16CH:1 RJ-45 Port (1000M)

Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.42, CGI Conformant
Electrical
Power Supply DC12V/2A
Power Consumption <10W (Without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Construction
Dimensions Compact 1U, 260×236×48mm(10.2″×9.3″×1.9″)
Net Weight 0.75kg ( 1.7lb) (without HDD)
Gross Weight 1.5kg (3.3lb)
Installation Desktop installation
Certifications
Certifications FCC: Part 15 Subpart B ICES 003 Issue 6
CE: EN 55032: 2012+AC:2013 (Class B)

EN 55024 : 2010 EN 61000-3-2 : 2014

EN 50130-4: 2011 EN 61000-3-3 : 2013

UL 60950-1 and CAN/CSA C22.2 No. 60950-1-07
Not available.
Type Download
Datasheet
User Manual
Drawings (Dimension)
Drawings (Rear Panel – DHI-XVR5104HS)
Drawings (Rear Panel – DHI-XVR5108HS)
Drawings (Rear Panel – DHI-XVR5116HS)
