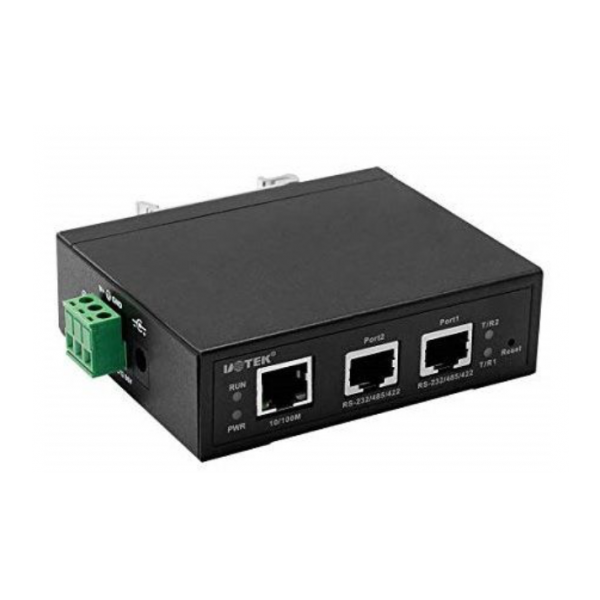

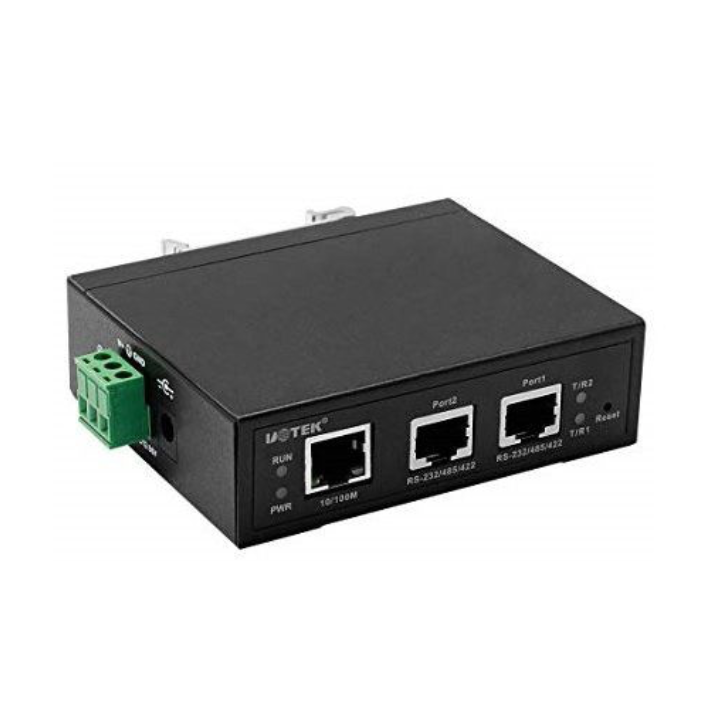

UT-6002 Serial Ethernet Server

SKU: UT-6002 Category: Tag:

UTEK 2 Port 10/100M RS-232/485/422 Serial Ethernet Server

Features:

  • Supports dynamic IP(DHCP) & static IP
  • Supports gateway & agent server, allows data transmission via Internet
  • Provides bidirectional transparent transmission for TCP/IP to serial, no need to make any update of the system
  • Built-in ARP, IP, TCP, HTTP, ICMP, SOCKET, UDP protocols
  • Supports 4 hosts simultaneous connection
  • DIN-Rail installation
UT-6002
UTEK 2 Port 10/100M RS-232/485/422 Serial Ethernet Server
Technical Specification
CPU 150MHz
Memory Data buffer space (each port) ≥60KB
Ethernet Port RJ-45, 10/100M(built-in 2KV electromagnetic isolation, surge 10/700us,
common mode 2,000V/differential mode 1,000V), auto MDI/MDI-X
PoE Supports IEEE802.3AF
Protocol IP, ICMP, UDP, TCP, HTTP, TELNET, DNS, DHCP, SNMP
System Supports Windows/XP/2003/Win 7/8/10 32 64 bit
Operating Mode VCOM, TCP SERVER, TCP CLIENT, UDP, Serial Telnet mode, Remote Pair mode, RFC 2217
Support Supports 4 host simultaneous connection
Configuration Web browser, VCOM Utility, Telnet
Serial Port Serial port x 8, RJ-45 (UT-6002MT adopts 3.81 4-pin terminal block)
Serial Port Protection RS-232/485/422 surge 10/700 us, common mode/differential mode 0.5KV
Baud Rate 300-921,600bps
Check bits None, Odd, Even, Mark, Space
Data bits 7, 8
Stop bits 1, 1.5, 2
Flow control RTS/CTS, XON/XOFF
Power 5V, 12-60VDC, with optional POE function, surge 1.2/50us, common mode 2,000V/ differential mode 1,000V
Operating current 350mA@12V max
Power port 5.08mm 3-pin terminal block & DC input
Operating temperature -40°C ~ +85°C
Storage temperature -40°C ~ +85°C
Relative humidity 5% ~ 95% (non-condensing)
