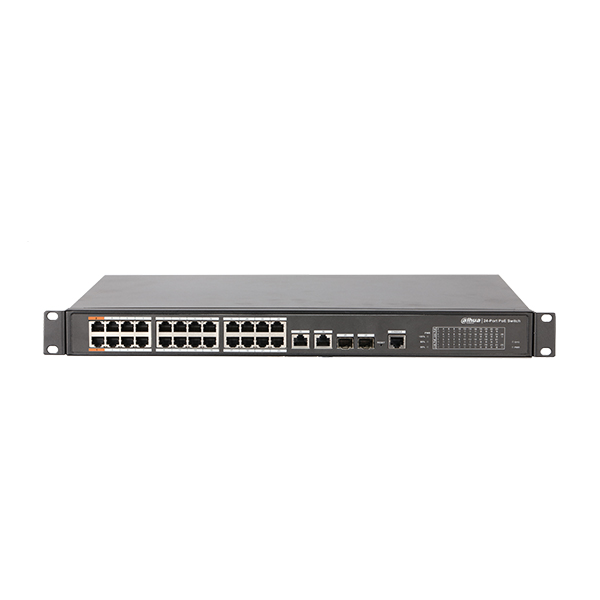

PFS4226-24Et-360

24-Port PoE Switch

Features:

  • Layer 2 management PoE switch
  • PoE budget: 360W
  • Support PoE, PoE+, Hi-PoE
  • ‘Orange port’ support Hi-PoE, can be used with the PoE extender (PFT1300)
  • 250 meters long distance PoE transmission
  • PoE management, PoE Setting/Event Statistics/Green PoE
  • Search and upgrade via ConfigTool
  • Support Web management
  • High lightning protection design
  • Non-blocking video transmission
Technical Specification
Model DH-PFS4226-24ET-360
Ethernet Port 2*10/100/1000 Base-T (Combo port)
2*1000 Base-X (Combo port)
24*10/100 Base-T (PoE power supply)
PoE Power Consumption Port1/2 support Hi-PoE (60W), PoE+, PoE
Each power ≤30W
Total≤360W
PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity 8.8G
Packet Forwarding Rate 6.55Mpps
Humidity 10%~90%
Power AC 100~240V
Lightning Protection Common Mode 4KV
Differential Mode 2V
Working Temperature ﹣10℃~55℃
Weight 3.51kg
Dimension(W×D×H) 440mm x300mm x44mm
Accessories
PFT3950 1.25G 850nm,500m,LC, Multi-mode
PFT3960 1.25G 1310/1550nm,20km,LC, Single-mode
PFT3970 1.25G 1550/1310nm,20km,LC, Single-mode
Service Characteristics
System Username / password: admin/admin
IP Address :192.168.1.110/24
PoE Budget 360W
MAC Table 4K
VLAN 802.1Q Standard VLAN
Spanning Tree STP
RSTP
Port Aggregation Static link aggregation
LACP protocol
Mirroring Many-to-one port mirroring
DHCP Support DHCP-Client
Long Distance Mode “Power & Data” transmission distance up to 250m
Flow Control Half-duplex based on back pressure type control
Full duplex based on PAUSE frame
Security Features IP+MAC binding based on port
IEEE802.1x port authentication
System Maintenance One-key recover
Support the updated packet upload
System log
QoS High and low priority, WRR
802.1P, DSCP
Support priority according to protocol
Network Management WEB(http and https protocol)
Support SNMP V1/V2C/V3
PoE Management PoE setting (real-time port comsumption)
PoE event statistics
Green PoE
