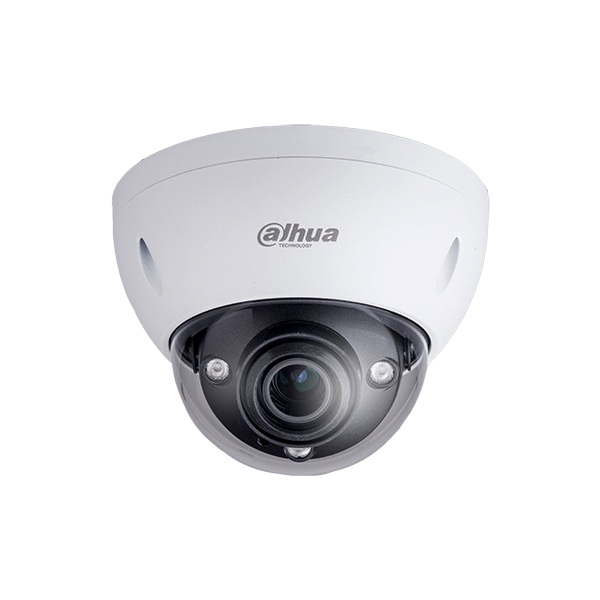

IPC-HDBW5631E-ZE

6MP WDR IR Dome Network Camera

Features:

  • 1/2.9” 6Megapixel progressive scan STARVIS™ CMOS
  • H.265&H.264 dual-stream encoding
  • 20fps@6M(3072×2048),25/30fps@4M(2688×1520)
  • Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.7mm ~13.5mm motorized lens
  • Max. IR LEDs Length 50m
  • Micro SD card memory, IP67,IK10, PoE+

Camera
Image Sensor 1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels 3072(H)x2048(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.03Lux/F1.4 (Color,1/3s,30IRE)
0.3Lux/F1.4 (Color,1/30s,30IRE)
0Lux/F1.4(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 50m (164ft)
IR On/Off Control Auto/ Manual
IR LEDs 3
Lens
Lens Type Motorized/ Auto Iris(DC)
Mount Type Board-in
Focal Length 2.7mm~13.5mm
Max Aperture F1.4
Angle of View H:91°~27° , V:58°~18°
Optical Zoom 5x
Focus Control Fixed
Close Focus Distance 0.3m
DORI Distance
DORI Distance
W T
Detect 79m(259ft) 256m(840ft)
Observe 32m(105ft) 102m(334ft)
Recognize 16m(52ft) 51m(167ft)
Identify 8m(41ft) 25m(84ft)
Pan/Tilt/Rotation
Pan/ Tilt/ Range Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 6M(3072×2048)/5M(3072×1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048×1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280×960)/ 720P(1280×720)/ D1(704×576/704×480)/
VGA(640×480)/ CIF(352×288/352×240)
Frame Rate Main Stream: 6M(1~20fps)/4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image
Smart IR Support
Defog
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Certifications
Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;IGMP; SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS
Local PC for instant recording
Micro SD Card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Interface
Video Interface 1 Port(For adjustment only)
Audio Interface 1/1 channel In/Out
RS485
Alarm 1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Electrical
Power Supply DC12V, AC24V, PoE+(802.3at)(Class 4)
Power Consumption <15W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions Φ159.1mm×117.9mm (6.26”×4.64”)
Net Weight 0.95kg (2.09lb)
Gross Weight 1.20kg (2.65lb)
