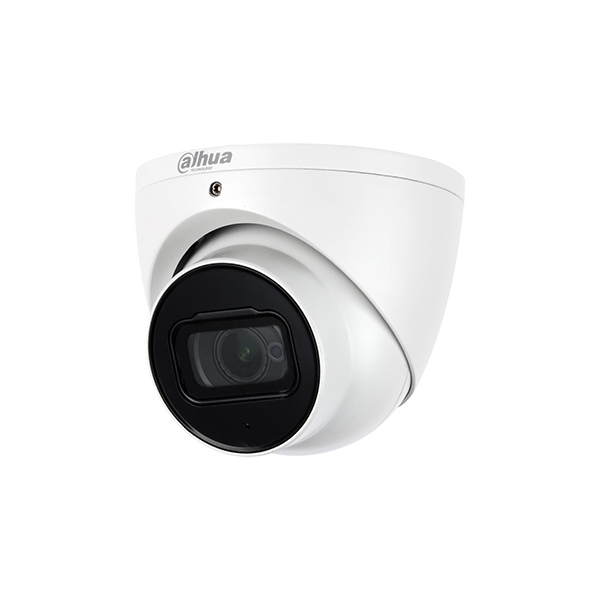

HAC-HDW2802T-A



4K Starlight HDCVI IR Eyeball Camera

Features:

  • Starlight, 120dB True WDR, 3DNR
  • Max. 4K resolution
  • HD/SD switchable
  • Audio in interface, built-in mic
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • Max. IR length 50m, Smart IR
  • IP67, DC12V

Categories: , ,
Camera
Image Sensor 1/2″ CMOS
Effective Pixels 3840(H)×2160(V), 8MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/4s~1/100000s
NTSC: 1/3s~1/100,000s
Minimum Illumination 0.005Lux/F1.6, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 50m (164feet)
IR On/Off Control Auto / Manual
IR LEDs 2
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F1.6
Angle of View H: 87° (110.8°/55°)
Focus Control Auto/Manual
Close Focus Distance 2500mm (1800mm, 6100mm)
98.43” (70.87”, 240.2′)
DORI Distance
Take RG59 as an example (Max. DC resistance < 5.0Ω/100m)
DORI Definition Distance
Detect 25px/m
(8px/ft)
2.8mm:84m(276ft)
3.6mm: 104m(341ft)
6mm:164m(538ft)
Observe 63px/m
(19px/ft)
2.8mm:34m(112ft)
3.6mm:42m(138ft)
6mm:66m(217ft)
Recognize 125px/m
(38px/ft)
2.8mm:17m(56ft)
3.6mm: 21m(69ft)
6mm: 33m(108ft)
Identify 250ppm
(76px/ft)
2.8mm:8m(26ft)
3.6mm:10m(33ft)
6mm:16m(52ft)
Pan/ Tilt/ Rotation
Pan/ Tilt/ Rotation Pan: 0° ~360°
Tilt: 0° ~ 70°
Rotation: 0° ~ 360°
Video
Resolution 8MP (3840×2160)
Frame Rate 15fps@4K, 20fps@6MP, 25/30fps@4MP
Video Output 1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface 1ch in & Built-in Mic
Electrical
Power Supply 12V DC ±30%
Power Consumption Max 8W (12V DC, IR on)
Environmental
Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -30°C (-22°F)
Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance IP67
Construction
Casing Aluminium
Dimensions Φ106mm×99.2mm (Φ4.17″×3.9″)
Net Weight 0.5kg (1.10b)
Gross Weight 0.62kg (1.37lb)
