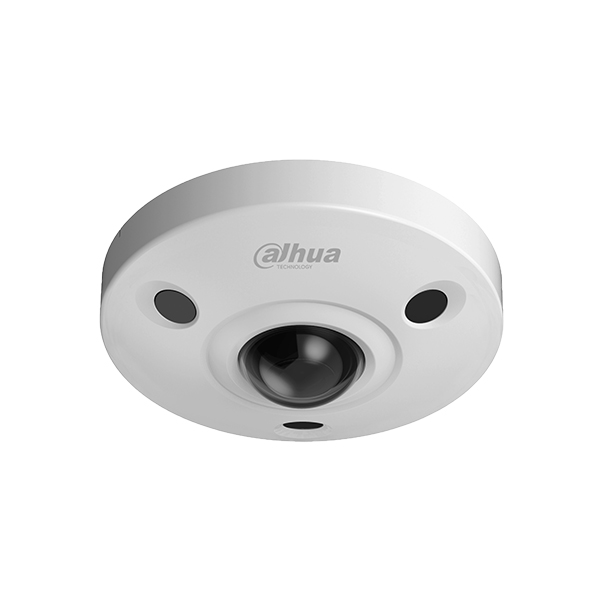

Dahua Ultra Series HD-CVI Camera HAC-EBW3802



8MP HDCVI IR-Fisheye Camera

Features:

  • 1/2” 8Megapixel progressive scan CMOS
  • Panoramic fisheye lens
  • Max. 15fps@4K
  • 120db true WDR,2D&3D NR
  • On-device lens distortion correction
  • Max.15m IR distance
  • IP67&IK10 ingress protection
  • Up to 500m transmission with RG59 coaxial cable

Dahua Ultra Series HD-CVI Camera HAC-EBW3802

4K IR Vandal-Proof HD-CVI Fisheye Camera

Camera
Image Sensor 1/2.8″ CMOS
Effective Pixels 1937(H)×1097(V), 2.1MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/4s~1/100000s
NTSC: 1/3s~1/100000s
Minimum Illumination 0.01Lux/F2.0 (Color), 30IRE,0lux IR on
S/N Ratio More than 65dB
IR Distance 15m
IR On/Off Control Auto (ICR)/Color/B/W
IR LEDs 3
Audio Built-in mic
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 2.5mm
Max Aperture F2.0
Angle of View H: 180°,V:100°
Focus Control
Close Focus Distance 0.6m(23.6”)
DORI Distance
Take RG59 as an example (Max. DC resistance < 5.0Ω/100m)
DORI Definition Distance
Detect 25px/m
(8px/ft)
53m(173.8ft)
Observe 63px/m
(19px/ft)
21.2m(69.6ft)
Recognize 125px/m
(38px/ft)
10.6m(34.7ft)
Identify 250ppm
(76px/ft)
5.3m(17.4ft)
Pan/ Tilt/ Rotation
Pan/ Tilt/ Rotation Pan: –
Tilt:-
Rotation: –
Video
Resolution 8MP (3840×2160)/4M(2560×1440)
Frame Rate PAL:3840×2160@12.5fps,2560×1440@25fps;
NTSC:3840×2160@15fps,2560×1440@30fps;
Video Output 1-channel HDCVI 4K video output & 1-channel CVBS video output
Day/Night Auto (Electronic) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Alarm I/O 2/1
Electrical
Power Supply DC12V ±25%
Power Consumption 7.4W (IR ON)
Environmental
Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -30°C (-22°F)
Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance IP67&IK10
Construction
Casing Aluminium
Dimensions Φ149.8mm x 47.7mm(Φ5.9″x 1,88″)
Net Weight 0.56kg (1.23lb)
Gross Weight 0.92kg (2.02lb)
