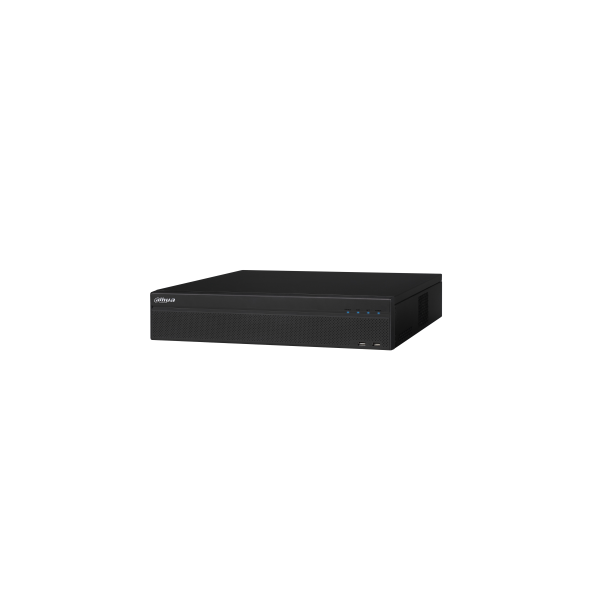

16 Channel Penta-brid 4MP 2U Digital Video Recorder


  • Embedded processor
  • Smart H.264 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 64 channels IP camera inputs, each channel up to 12MP
  • Support HDCVI/CVBS Loop Out
  • Smart Search and Intelligent Video System

Main Processor Embedded Processor
Operating System Embedded LINUX
Interface 2 HDMI(HDMI1 up to 4K), 1 VGA, 1 TV
Resolution 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 1/4/8/9/16/25/36
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email,

FTP, Snapshot, Buzzer and Screen Tips

Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input 8/16
Relay Output 6 channel
Playback and Backup
Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Internal HDD 8 SATA Ports, up to 8 TB capacity for each disk
Auxiliary Interface
USB 4 USB Ports (2USB 2.0 , 2 USB 3.0)
RS232 1 Portfor PC communication & Keyboard
RS422 1 Portfor PTZ Control
RS485 1 Port, for PTZ Control
Audio and Video
HDCVI Camera Input 8/16 Channel
IP Camera Input up to 64 Channel, each channel up to 12MP
Audio In/Out 8/16 Channel input, 1 Channel output, BNC
Two-way Talk 1 MIC IN, 1 MIC OUT, BNC(independent)
Compression H.264+/H.264
Resolution 4K, 4MP, 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate Main stream: 1st and 9th channel 4K(1~12/15fps)/4MP (1~15fps), others 4MP(1~15fps);

1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)

Sub steram:960H/D1/CIF/QCIF(1~25/30fps)

Bit Rate 1Kbps ~ 12288Kbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Interface 2 RJ-45 Port (1000M)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.42, CGI Conformant
Power Supply AC 100~240V, 50/60HZ
Power Consumption <40W (Without HDD)
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Dimensions 2U, 440mm×455mm×95mm (17.3″×17.9″×3.7″)
Net Weight 8.24 kg (without HDD)
Gross Weight 9.48 kg (without HDD)
Installation Desktop installation/Rack installation
Certifications FCC: 47 CFR PART 15 SUBPART B, 2015
CE: EN 60950-1:2006+A11:2009+A1:2010+A12:


UL 60950-1 and CAN/CSA C22.2 No. 60950-1-07
