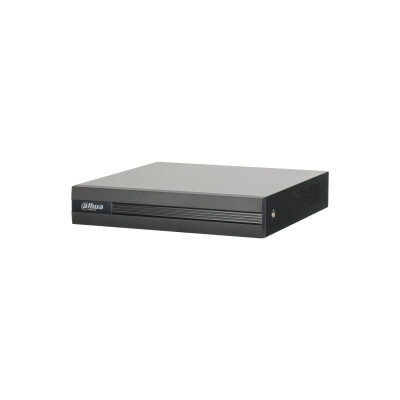

Cooper Series HD-CVI XVR1B16H
Cooper 1080P/4M-N Pentabrid DVR
| System | |||||
| Main Processor | Embedded Processor | ||||
| Operating System | Embedded LINUX | ||||
| Video and Audio | |||||
| Analog Camera Input | 16 Channel, BNC | ||||
| HDCVI Camera | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps | ||||
| AHD Camera | 5MP, 4MP, 1080P@25/30, 720P@25/30fps | ||||
| TVI Camera | 5MP, 4MP, 1080P@25/30, 720P@25/30fps | ||||
| CVBS Camera | PAL/NTSC | ||||
| IP Camera Input | 16+8CH, each channel up to 6MP | ||||
| Audio In/Out | 1/1, RCA | ||||
| Two-way Talk | Reuse audio in/out, RCA | ||||
| Recording | |||||
| Video Compression | H.265+/H.265/H.264+/H.264 | ||||
| Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF | ||||
| Record Rate | Main Stream: the 1st & 2nd channels 5M-N(1~10fps); other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/ D1/CIF (1~25/30fps) Sub stream:CIF/QCIF (1~15fps) |
||||
| Video Bit Rate | 32Kbps ~ 6144Kbps Per Channel | ||||
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop | ||||
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec | ||||
| Audio Compression | AAC(only for the 1st channel), G.711A, G.711U, PCM | ||||
| Audio Sample Rate | 8KHz, 16 bit Per Channel | ||||
| Audio Bit Rate | 64Kbps Per Channel | ||||
| Display | |||||
| Interface | 1 HDMI ,1 VGA | ||||
| Resolution | HDMI: 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
||||
| Multi-screen Display | When IP extension mode not enabled:1/4/8/9/16 When IP extension mode enabled:1/4/8/9/16/25 |
||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||
| Network | |||||
| Interface | 1 RJ-45 Port (1000M) | ||||
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports IP camera, DVR, NVS, etc.) | ||||
| Max. User Access | 128 users | ||||
| Smart Phone | iPhone, iPad, Android | ||||
| Interoperability | ONVIF 16.12, CGI Conformant | ||||
| Video Detection and Alarm | |||||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | ||||
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis | ||||
| Alarm input | N/A | ||||
| Relay Output | N/A | ||||
| Playback and Backup | |||||
| Playback | 1/4/8/16 | ||||
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | ||||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | ||||
| Backup Mode | USB Device/Network | ||||
| Storage | |||||
| Internal HDD | 1 SATA Port, up to 6TB capacity | ||||
| eSATA | N/A | ||||
| Auxiliary Interface | |||||
| USB | 1 USB 2.0 , 1 USB 3.0 | ||||
| RS232 | N/A | ||||
| RS485 | N/A | ||||
| Electrical | |||||
| Power Supply | DC12V/2A | ||||
| Power Consumption (Without HDD) |
<10W | ||||
| Construction | |||||
| Dimensions | Compact 1U, 260×236×48mm(10.2″×9.3″×1.9″) | ||||
| Net Weight (without HDD) |
0.86kg (1.90lb) | ||||
| Gross Weight | 1kg (2.2lb) | ||||
| Installation | Desktop installation | ||||
| Environmental | |||||
| Operating Conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH | ||||
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH | ||||
| Third-party Support | |||||
| Third-party Support | Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | ||||
| Certifications | |||||
| Certifications | FCC: Part 15 Subpart B | ||||
| CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
|||||
| UL: UL 60950-1 | |||||
