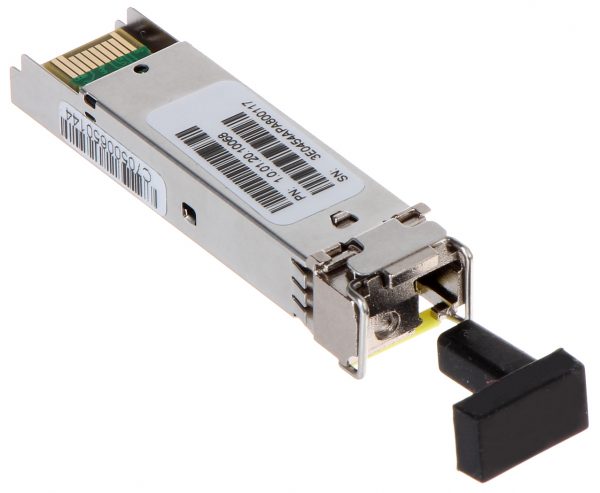

PFT3970 Gigabit SFP (Small Form Pluggable) Fiber Module Transceiver
| Specifications | |||||
| Transmission Protocols | IEEE 802.3z 1000Base-FX | ||||
| Fiber Type | Single-mode fiber | ||||
| Maximal Transmission Range | 20km | ||||
| Transfer Rate | Max. 1.25 Gb/s | ||||
| Number of Used Fibers | 1 | ||||
| Optical Connectors | LC | ||||
| Light Source/ Optical Wavelength |
Laser FP – 1550 / 1310 nm (Tx / Rx) |
||||
| Main Features | Wavelength-Division Multiplexing technology WDM (Tx 1310nm / Rx 1550nm) | ||||
| Power Supply | 3.3 V DC | ||||
| Operation Temperature | -40°C … 85°C | ||||
| Weight | 0.02kg | ||||
