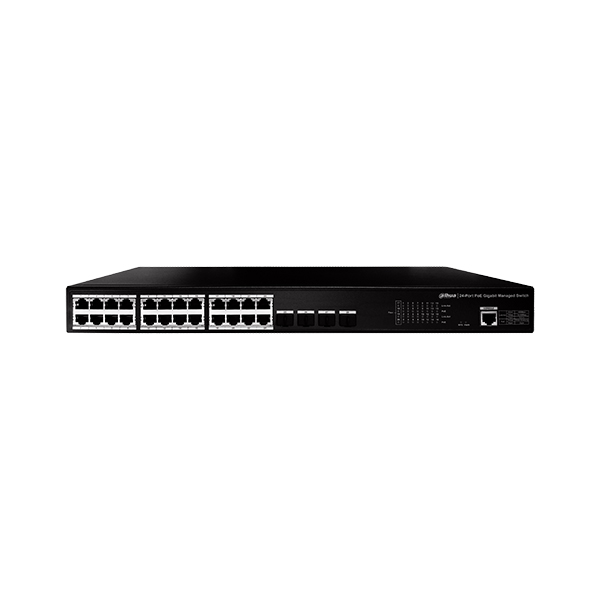

PFS4428-24GT-370

24-Port PoE Gigabit Managed Switch

Features:

  • Two-layer network management PoE switch
  • MAC auto study and aging, MAC address list capacity is 8K
  • Support IEEE802.3af, IEEE802.3at standard
  • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
  • Support command-line interface
Technical Specification
Model DH-PFS4428-24GT-370
Ethernet Port 24*10/100/1000 Base-T(PoE power supply)
4*1000 Base-X
PoE Power Consumption Each power ≤30W
Total≤370W
PoE Protocol IEEE802.3af
IEEE802.3at
PoE Budget 370W
Switching Capacity 56Gbps
Packet Forwarding Rate 41.66Mpps
Packet Buffer Memory 4.1Mb
Application Humidity 10%-90%
Power AC 100~240V
Lightning Protection Common Mode 2KV
Differential Mode 500V
Working Temperature -10℃~55℃
Weight 3.85kg
Dimension(W×D×H) 440mmX260mmX44mm
Accessories
PFT3950 1.25G 850nm,500m,LC, Multi-mode
PFT3960 1.25G 1310/1550nm,20km,LC, Single-mode
PFT3970 1.25G 1550/1310nm,20km,LC, Single-mode
Service Characteristics
System Username / password: admin/admin
IP Address :192.168.1.110/24
MAC Table 8K
VLAN 802.1Q
Port Aggregation Manual aggregation
Mirroring Support many-to-one port mirroring
Flow Control Support half-duplex based on back pressure type control
Support full duplex based on PAUSE frame
Multicast IGMP Snooping
Quality of Service Support Diff-Serv QoS
Each port support 4 output queue
Support 802.1p/DSCP priority mapping
Security Features Hardware supports IP+MAC binding based on port
Support IP source address protection
Support ARP detection
System Maintenance Support the configuration file upload/download
Support the updated packet upload
Support system logs
Network Management WEB(http protocol)
