| Technical Specification | ||||||

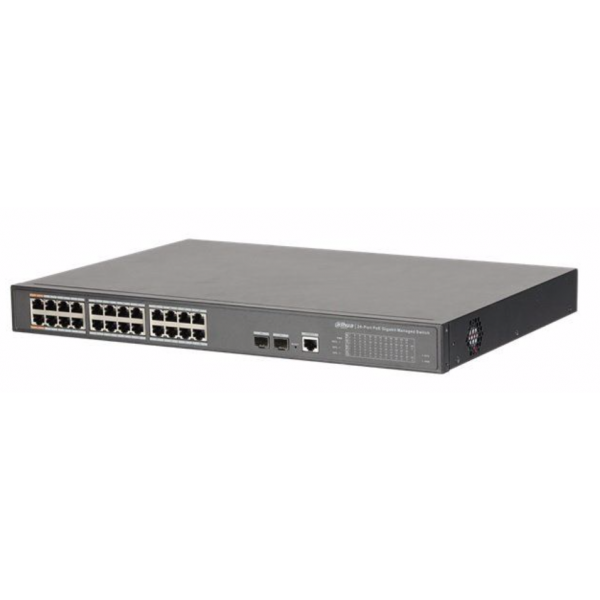

| Model | DH-PFS4226-24GT-240 | |||||
| Ethernet Port | 24*10/100/1000 Bae-T (PoE power supply) 2*100/1000 Base-X |
|||||
| RS232 Serial Console | 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8, N, 1 | |||||
| PoE Power Consumption | Port1 and Port2 support Hi-PoE 60W Each power ≤30W, Total≤240W |
|||||
| PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE | |||||
| Switching Capacity | 52Gbps | |||||
| Packet Forwarding Rate | 38.688Mpps | |||||
| Packet Buffer Memory | 4Mb | |||||
| Application Humidity | 5%~95% | |||||
| Power | AC100-240V, 50/60Hz | |||||
| Lightning Protection | Common Mode 2KV Differential Mode 1KV | |||||
| Working Temperature | -10°C~55°C | |||||
| Dimension(W×D×H) | 440mm x300mm x44mm | |||||
| Accessories | ||||||
| Model | ||||||
| PFT3950 | 1.25G 850nm, 500m, LC, Multi-mode | |||||
| PFT3960 | 1.25G 1310/1550nm, 20km, LC, Single-mode | |||||
| PFT3970 | 1.25G 1550/1310nm, 20km, LC, Single-mode | |||||
| Service Characteristics | ||||||
| System | Username / password: admin/admin | |||||
| IP Address :192.168.1.110/24 | ||||||
| PoE Budget | Total≤240W | |||||
| MAC Table | 8K | |||||
| NTP | Support | |||||
| DHCP | Support DHCP client/server | |||||
| Support DHCP snooping | ||||||
| VLAN | 802.1Q Standard VLAN | |||||
| Port Aggregation | Manual aggregation/LACP | |||||
| Mirroring | Many-to-one port mirroring | |||||
| Flow Control | Half-duplex based on back pressure type control;Full duplex based on PAUSE frame | |||||
| Multicast | IGMP Snooping v1/v2/v3 | |||||
| Security Features | Users management, SSH, HTTPS, SNMP v1/v2/v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection | |||||
| Spanning tree | Support STP/RSTP/MSTP | |||||
| LLDP | Support | |||||
| MAC Table | Support MAC address table configuration | |||||
| QoS | Support QoS base on CoS/DPL/PCP/DEI Each port support 8 output queue Support port shaping Support port tag remarking Support QoS base on DSCP |
|||||
| System Maintenance | Support the configuration file upload/download Support the updated packet upload System log |
|||||
| Network Management | WEB(http protocol), serial, SNMP | |||||
