PFS3010-8ET-96

Categories: , ,

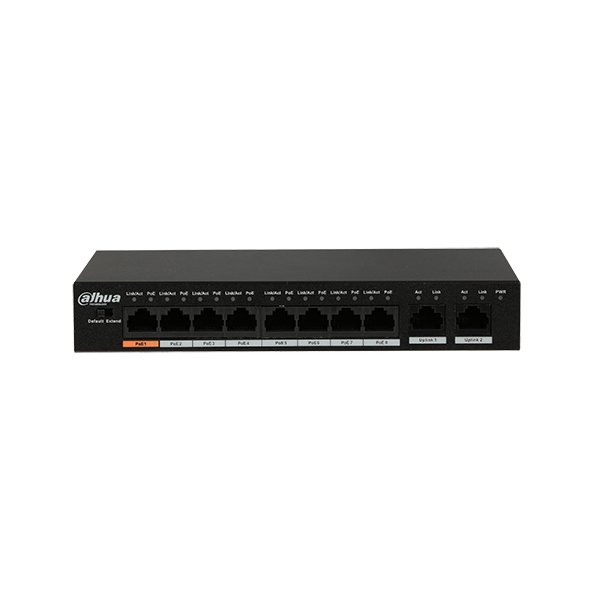

8-Port Fast Ethernet PoE Switch

Features:

  • Layer two commercial switch
  • Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
  • MAC auto learning, aging, MAC address capacity is 2K
  • Supports MDI/MDIX self-adaptation
  • RJ45 port supports 10/100/1000 Mbps self-adaptation
  • Supports IEEE802.3af and IEEE803.3at power supply standards
  • Adopts metal enclosure
  • Supports Hi-PoE 60W
  • Supports DC 48-57V power supply
Add to Enquiry List
Technical Specification
Model PFS3010-8ET-96
Ethernet Port 8*10/100Mbps PoE ports
2*10/100/1000Mbps ports
PoE Power Consumption Port1≤60W, Port2-8≤30W, Total≤96W
PoE Protocol IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity 5.6Gbps
Packet Forwarding Rate 4.17Mpps
Packet Buffer Memory 4Mb
MAC Table Size 16K
Flow Control Enable by default
Application Humidity 10%~90%
Power DC48~57V power adapter
Lightning Protection Common Mode 2KV
Differential Mode 0.5KV
Working Temperature -10°C~+55°C
Weight 0.49kg
Dimension(W×D×H) 190mm×100mm×30mm
