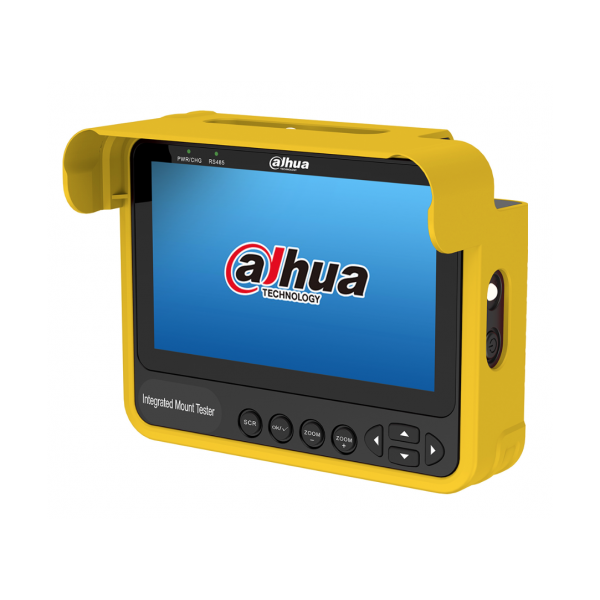

Dahua PFM904 Integrated Mount Tester

SKU: PFM904 Category: Tag:

Integrated Mount Tester

Dahua PFM904 Integrated Mount Tester for HDCVI/AHD/TVI/CVBS video and audio



Features:

  • Ergonomic, Portable Design
  • One-hand Operation with Removable Wrist Strap
  • 4.3-n. TFT Screen, 480 x 272 Resolution
  • Supports HDCVI, AHD, TVI and CVBS Formats
  • Audio and RS485 Test Control
  • 12 VDC, 1A Power Ouptut
  • Micro USB-B Port for Charging and Data I/O
  • Two (2) 18650 Lithium Ion Batteries, Replaceable up to 8 Hours Normal Operation



Add to Enquiry List
Dahua PFM904 Integrated Mount Tester for HDCVI/AHD/TVI/CVBS video and audio
Technical Specification
Operating System Linux
Language Support Multi-language Interface
Operation Mode Eight-key Keyboard with Power Button
Functions Auto Standby/Shutdown, Keyboard Sound, Local Update
Screen 4.3-in. TFT, 480 x 272 Resolution
LED Indicator 3 x 35 lm Lights
Physical Ports
Audio Input One (1) Channel, 3.5 mm Jack
Power Supply, Output 12 VDC, 1 A Power Output
USB One (1) Micro-B, for charging tester and data I/O
RS485 Port One (1) Port
Protocol Over 30 Protocols, including Pelco-P/D, Samsung, Panasonic, Lilin, and Yaan
Baud Rate 150 bps; 300 bps; 600 bps; 1200 bps; 2400 bps; 4800 bps; 9600 bps; 19200 bps
Analog Video Test
Format HDCVI, AHD, TVI, CVBS
Supported Video Formats HDCVI 2 MP at 30 fps, 4 MP at 30 fps, 5 MP at 20 fps,
6 MP at 20 fps, 8 MP at 15 fps
TVI 2 MP at 30 fps, 4 MP at 30 fps, 5 MP at 20 fps;
AHD 2 MP at 30 fps, 4 MP at 30 fps
CVBS PAL/NTSC Formats
Function Control OSD Menu Display
PTZ
Video Display Live View
Power
Charger Input: Micro USB; 5V, 1A
Battery Two (2) 18650 Lithium Ion Batteries, up to 14.8 Wh
USB Eight (8) Hours
Power Output 12 VDC, 1 A, maximum
Certifications
Electromagnet Compatibility (EMC) 47 CFR FCC Part 15 Subpart B
EN 55032:2015
EN 55035:2017
EN 61000-3-2:2014
EN 61000-3-3:2013
Environmental
Working Temperature –10° C to +55° C (14° F to 131° F), 30% to 95% RH
Casing Color Yellow
Dimensions 120.0 mm x 100.0 mm x 65.0 mm
(4.92 in. x 3.94 in. x 2.56 in.)
Net Weight 0.34 kg (0.75 lb)
Gross Weight 0.74 kg (1.63 lb)
ESD Protection Air Discharge ±8 KV
ContactDischarge ±6 KV
