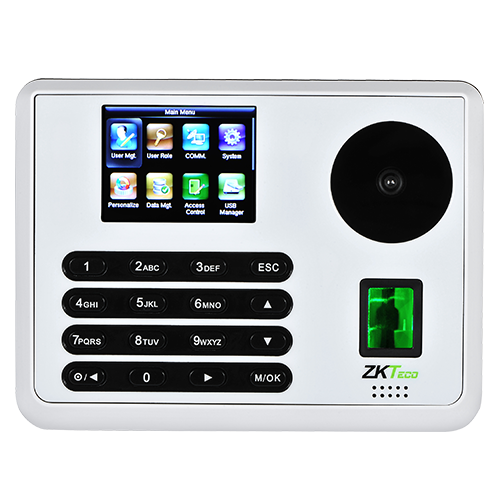

ZKTeco P160/ID Time Attendance Terminal

SKU: P160/ID Category: Tag:

ZKTECO Time Attendance Multi-Biometric T&A Terminal with Access Control Functions


  • 600 Palms, 3,000 Fingerprints, 10,000 cards and 100,000 records
  • Elegant ergonomic design
  • Verification speed less than 1 second
  • Easy installation
  • Professional ZKTeco Palm and fingerprints identification algorithm
  • TCP/IP, USB-Host and Wi-Fi communication
  • POE module / 3G module / High (general) level access control module/ Battery module / Printer
ZKTeco P160/ID Time Attendance Terminal
Display 2.8-inch TFT Color Display
Palm Capacity 600 (Standard)
Fingerprint Capacity 3,000
Card Capacity 10,000 (Optional)
Logs Capacity 100,000
Communication TCP/IP, USB-Host, Wi-Fi (Optional)
Standard Functions Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User ID, DST, Scheduled-bell,SMS,RS232 Printer
AC module 1: Exit Button, Door Lock, Alarm, 12V OUT, AUX IN
Optional Function ID Card, MIFARE Card
AC module 2: Exit Button, Door Lock, Alarm,12V OUT, AUX IN, Door Sensor, RS485,
Wiegand IN/OUT.
POE, 3G, Battery Module, ADMS
Power Supply 12V 1.5A
Verification Speed ≤1 sec
Operating Temperature 0 – 45 °C
Operating Humidity 20% – 80%
Dimensions 179.95 x 134.94 x 38.5 mm
Video and Audio
Video Compression H.265/H.264
Frame Rate Up to 25/30fps
Digital Zoom 16x
Audio Two-way Audio
Notice Management
Motion Detection Yes
Human Detection Yes
Configurable Region Yes
Abnormal Sound Alarm Yes
Wi-Fi IEEE802.11b/g/n,50m Open Field
Imou App iOS, Android
Auxiliary Interface
Micro SD Card Slot Up to 256GB
Mic & Speaker Built-in Mic & Speaker
Reset Button Yes
Power Supply DC 5V1A
Power Consumption < 3.5W
Working Environment -10°C~+45°C, Less Than 95%RH
Dimensions 106.1 × 77.4× 77.4mm (4.17× 3.04 × 3.04 in)
Weight 238g (0.52lb)
Certifications CE, FCC
