Digital Motion Detector Modules

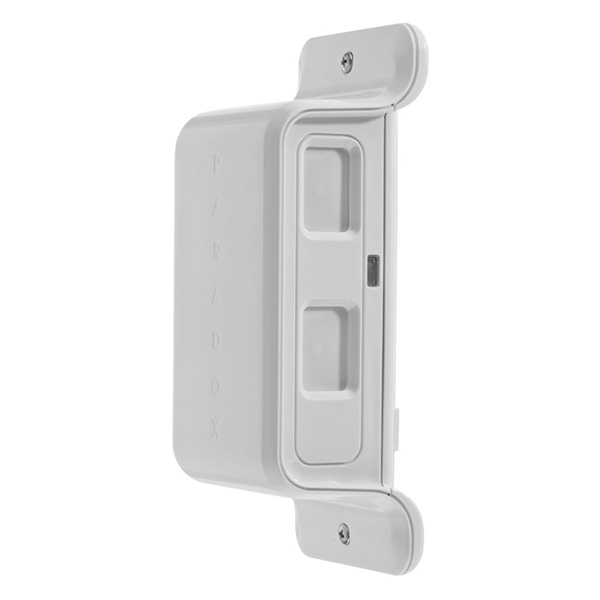

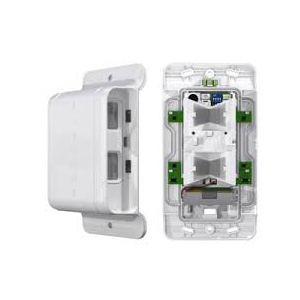

Digital outdoor dual side-view detector with 4x quad sensors
Features:
- Advanced Digital Technology:
- Two double passive infrared motion detector with eight narrow detection beams, managed by Full Authority Digital Electronics Control (FADEC)
- High-resolution and full dynamic range digital signal conversion
- High-speed, advanced algorithm digital signal processing
- Digital EMI / RFI interference rejection
- True Pet Immunity, up to 40kg (90b)
- Advanced Optical Technology:
- 4x dual element sensors arrangement
- High efficiency long focal point (1.77″) lens, providing long-range narrow beams
- 2 pairs of narrow beams per side provide 2x signals per protected area crossing for increased “catch” and false alarm rejection
- Combination optics of mirror reflector and 2nd generation Fresnel “LoDiff” Lens
- Increased white light rejection
- Easy Installation and Setup:
- Single or Dual Zone operation modes: two sides can report to a single zone or to two separate zones
- Optical and digital range adjustments
- Bright LED and buzzer indicator for clear adjustment feedback
- No need for PCB removal
- Wall-mount, with built-in level tool
- In-field firmware upgradable via serial port
