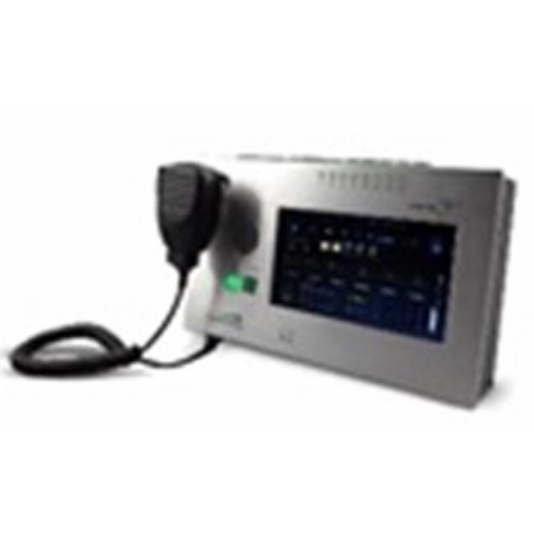

Merlaud MIP_TERS8 IP Terminal with Touch Screen


  • Industrial touch panel 7′ LED control with powerful function
  • High performance ARM processor, can realize the excellent network audio transmission performance
  • B/S structure and can be managed via web browsed
  • Advanced network structure design, support standalone running without server
  • Built-in 2*20W 8Ω Amplifier and connect with 8Ω speaker directly without extra Amplifier
  • High reliability and stability with industrial level
  • Working Temperature between (-40 ~ 85 degree)
  • Build in HUB for Network in and Network out (TCP/IP)
  • POE function optional
  • USB and SD card plug and play music function available
  • 12V ~ 24V widely range power supply
  • XLR professional connector can connect with professional microphone
  • 4 Timing program schedule build in to do system control automatically
  • 8 Sub zone available (800W extra/sub-zone available) and no limitation for IP Zone
  • 32 Extra triggers for EVA/Fire Alarm available to adding dry contacts extra boards
  • Announcement recording automatically function available for tracing
  • RS Link control over network available can be easily
  • Communication delay <50ms on the top level of IP PA system
  • Announcing and talk back very flexible
  • Wall mounted type

Merlaud MIP_TERS8 IP Terminal with Touch Screen

Technical Specifications
Power Supply DC12V, 2A (12V-24V Wide Range)
Network Interface 100M Base network, RJ425 port, 1.5KV Electric isolation, with transmission data indicating
Line Input 50mVpp, S/N Rate: 86dB
Line Output 1500mVpp, THD <0.3%, Internal resistance 500Ω, S/N Rate: 89dB
Network Protocol Support TCP, UDP, HTTP, RTPS
