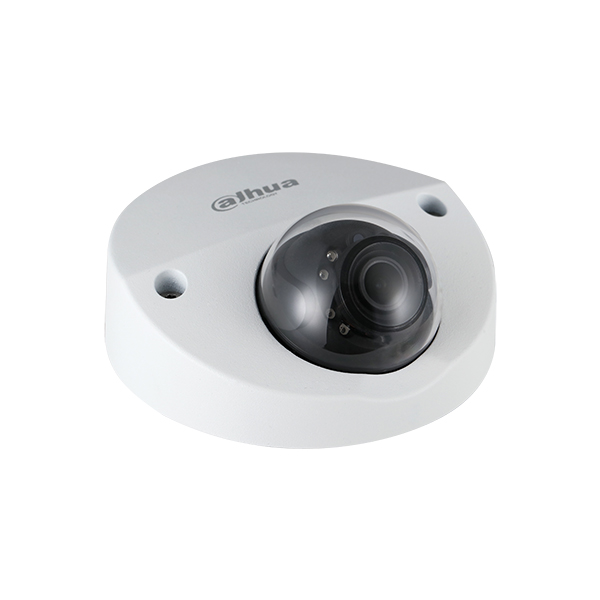

HAC-HDBW2241F-A

2MP Starlight HDCVI IR Dome Camera

Features:

  • Starlight, 120dB true WDR, 3DNR
  • Max. 30fps@1080P
  • HD/SD output switchable
  • Audio in interface, built-in mic
  • 3.6mm fixed lens (2.8mm optional)
  • Max. IR length 20m, Smart IR
  • IP67, IK10, DC12V±30%

Categories: , ,
Camera
Image Sensor 1/2.8″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/4s~1/100000s
NTSC: 1/3s~1/100000s
Minimum Illumination 0.004Lux/F1.6, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 8
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm Optional)
Max Aperture F1.6
Angle of View H: 86.9° (110°)
Focus Control N/A
Close Focus Distance 1200mm (500mm)
47.2” (19.7”)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 60°
Tilt: 0° ~ 80°
Rotation: 0° ~ 360°
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect 25px/m
(8px/ft)
2.8mm: 39m(128ft)
3.6mm: 55m(180ft)
Observe 63px/m
(19px/ft)
2.8mm: 15m(49ft)
3.6mm: 22m(72ft)
Recognize 125px/m
(38px/ft)
2.8mm: 8m(26ft)
3.6mm: 11m(36ft)
Identify 250px/m
(76px/ft)
2.8mm: 4m(13ft)
3.6mm: 6m(20ft)
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D / 3D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface 1ch in & Built-in Mic
Electrical
Power Supply 12V DC ±30%
Power Consumption Max. 3.6W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
*Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance IP67 & IK10
Construction
Casing Aluminium
Dimensions Φ106mm×50.3mm (Φ4.17″×1.98″)
Net Weight 0.31kg (0.68lb)
Gross Weight 0.45kg (0.99lb)
