DPB18-AI

Categories: , ,

Features:

  • Industrial design, small and portable, matching monitor, video wall, LED screen for advertising
  • 4 function modules include network release, local release, app manager and system settings
  • Supports video, picture, audio, txt, PDF, IPC stream, time, weather and other multimedia information released, made for advertising industry
  • Support the program material off the network or outage resume function, greatly save bandwidth and network flux
  • Dahua MPS platform provides unified remote management for system integrators and media operators
Add to Enquiry List
System

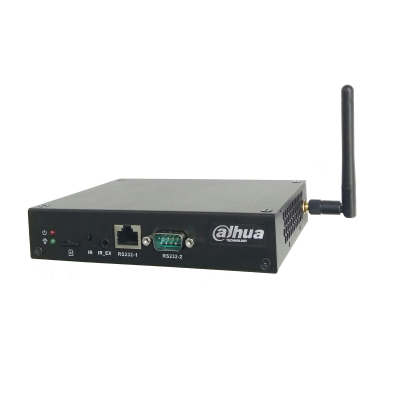

Model DPB18-AI
CPU 4 core 64-bit processor
RAM 1GB
ROM 16GB
Operating System Android 5.1
Performance
Management Platform MPS
Material Type Audio, video, image, time, weather, countdown, txt, web page, stream media, pdf
Audio/Video Encoding Format Mp4, avi, mov, asf, wmv, rm, rmvb, mkv, jpg, jpeg, gif, bmp, png, mp3, wma, wav
Scrolling marquee Support
Play Mode Instant play, specified time play, periodic play, inter-cut play
Play Schedule Day, week, month, festival, custom
Decoding Capacity 1CH@4K(60fps) or 2ch@1080P
Compression Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Connectivity
Input RJ45×1, USB2.0×1, USB3.0×1, SD×1,
Output HDMI2.0a×1, Audio output×1
External Control RS232
Wi-Fi Yes
Mechanical Specification
Dimension 150×100×30mm(5.9″×3.9″×1.2″)
Package Size 266×239×77mm(10.5″×9.4″×3.0″)
Gross Weight 0.87kg
Installation Mode Desktop
Power & Environmental Conditions
Power DC 12V/1A
Type External
Max Consumption 4W
Standby Consumption 2W
Working Temperature/Humidity -10℃~+55℃/10%~90%
Storage Temperature/Humidity -20℃~+60℃/5%~95%
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, SDK, CGI
Accessory
Included in Box Power cord, adapter, Wi-Fi antenna, user manual, remote control
