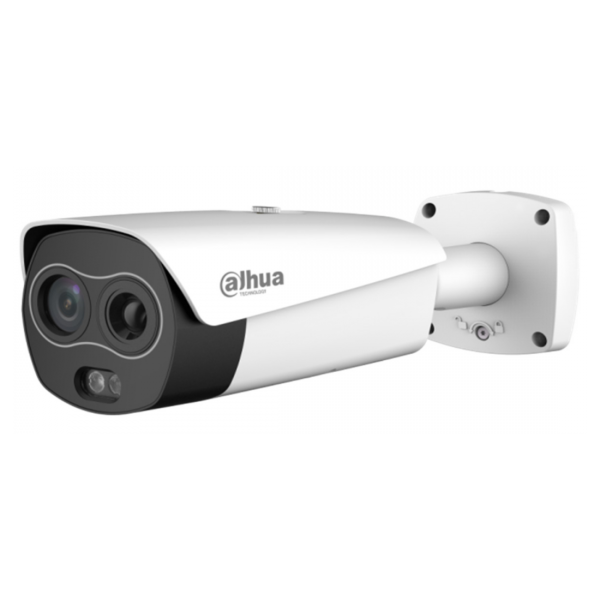

Thermal Network Bullet Camera
| Technical Specification | ||||||
| Detector Type | Vanadium oxide uncooled focal plane detector | |||||
| Effective Pixels | 400 x 300 | |||||
| Pixel Pitch | 17 μm | |||||
| Spectral Range | 8 μm–14 μm | |||||
| Thermal Sensitivity (NETD) | ≤40 mK | |||||
| Focal Length | 7.5 mm; 13 mm | |||||
| Field of View | 7.5 mm: horizontal: 53.7°, vertical: 39.7° 13 mm: horizontal: 30°, vertical: 22.6° |
|||||
| Focus Mode | Fixed-focal | |||||
| Aperture | F1.0 | |||||
| Digital Detail Enhancement (DDE) | Yes | |||||
| Thermal Image Stabilization | Electronic Image Stabilization | |||||
| AGC | Auto; manual | |||||
| Noise Reduction | 2D NR; 3D NR | |||||
| Image Flip | 90°/180°/mirror | |||||
| Color Palettes | 18 color modes selectable such as Whitehot/ Blackhot/Ironrow/Icefire | |||||
| Temperature Measurement Range | 30°C ~+45°C | |||||
| Temperature Accuracy | Max ±0.3°C with blackbody Max ±1°C without blackbody | |||||
| Temperature Mode | Spot: 12 Line: 12 Area: 12 Support 12 rules simultaneously |
|||||
| Visible Lens | ||||||
| Focal Length | 4mm | 8mm | ||||
| Max Aperture | F2.0 | F1.9 | ||||
| Angle of View | H: 84° V: 45° | H: 40° V: 22° | ||||
| Audio and Video | ||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG | |||||
| Resolution | Main stream: (1280 × 1024/1280 × 960/1280 × 720/400 ×300), 1280 × 960 by default; Sub stream: (640 × 512/640 × 480/400 × 300@), 400 × 300 by default |
|||||
| Audio Compression | G.711a; G.711mu; AAC; PCM | |||||
| Image Encoding Format | JPEG | |||||
| General Function | ||||||
| Two-way Talk | Yes | |||||
| Network Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
|||||
| Region of Interest (ROI) | Yes | |||||
| Edge Storage | FTP; Micro SD card (256G, hot plug) | |||||
| Interoperability | ONVIF; CGI; Dahua SDK | |||||
| Browser | IE: IE8 and the later, and explorer with IE core Google: 42 and the earlier Firefox: 42 and the earlier Safari: 10 and the earlier |
|||||
| User/Host | 20 channels at most (the total bandwidth 64M) | |||||
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
|||||
| User Management | Support 20 users at most and users are classified as two groups – administrator group – user group |
|||||
| Malfunction Detection | Network disconnection; IP addresses conflict; SD card error (status or storage space) |
|||||
| Port | ||||||
| Analog Video Output | 1 channel of CVBS output with BNC port | |||||
| Network | 1 10M/100M Ethernet port (RJ-45) | |||||
| Alarm Input | 2 channels | |||||
| Alarm Output | 2 channels | |||||
| Audio Input | 1 channel | |||||
| Audio Output | 1 channel | |||||
| Alarm Linkage | SD card recording/on-off output/ siren and light/email/PTZ/snapshot |
|||||
| Alarm Event | Motion detection/privacy mask/audio detection/ SD card abnormality/network abnormality/anti-burn warning |
|||||
| RS-485 | 1 channel | |||||
| Power | ||||||
| Power Supply | 12V±20% DC, 1.2A, PoE (802.3af), ePoE | |||||
| Power Consumption | Basic: 5.0W Maximum: 12W (power adapter excluded) |
|||||
| Environment | ||||||
| Operating Temperature | 10°C to +30°C | |||||
| Operating Humidity | ≤95% | |||||
| Self-Adaptive | Auto heating to protect the chip under the cold environment | |||||
| Physical Characteristics | ||||||
| Protection Grade | IP67, anti-surge 6KV, anti-elctrostatic 8KV (touched by objects), anti-elctrostatic 15KV (air) |
|||||
| Packaging Dimensions | 365mm × 175mm × 176mm (14.37″×6.89″ × 6.93″) | |||||
| Net Weight | ≤1.4 kg (3.09 lb) | |||||
| Gross Weight | ≤1.9 kg (4.19 lb) | |||||
| Power Adaptor | Selectable | |||||
| Lens | Contained | |||||
| Certification | ||||||
| Certifications | CE; FCC | |||||
