Dahua Lite Series Fixed Lens IP Cameras-IPC-HFW1431S

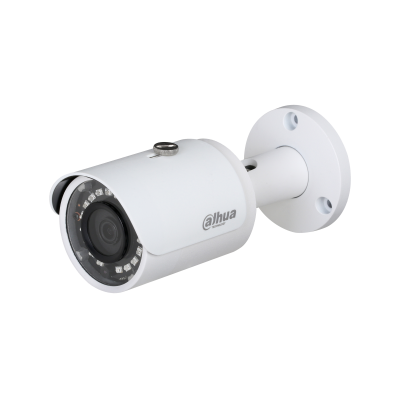

4MP WDR IR Mini-Bullet Camera
Camera |
|||||||
| Image Sensor | 1/3” 4Megapixel progresive CMOS | ||||||
| Effective Pixels | 2688(H) x1520(V) | ||||||
| ROM | 32 MB | ||||||
| RAM | 512MB | ||||||
| Scanning System | Progressive | ||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||
| Minimum Illumination | 0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/F2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on) |
||||||
| S/N Ratio | More than 50dB | ||||||
| IR Distance | Distance up to 30m(98ft) | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| IR LEDs Number | 18 | ||||||
| Pan/Tilt/Rotation Range |
Pan: 0°–360° |
|
|
||||
Lens |
|||||||
| Lens Type | Fixed | ||||||
| Mount Type | Board-in | ||||||
| Focal Length |
2.8 mm (3.6 mm optional) |
|
|
||||
| Max. Aperture |
F2.0/F2.0 |
|
|
||||
| Angle of View | H:104°/87°, V:57°/48° | ||||||
| Iris Type | Fixed | ||||||
| Close Focus Distance |
N/A |
|
|
||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||
| 2.8 mm | 63m(207ft) | 25m(82ft) | 13m(43ft) | 6m(20ft) | |||
| 3.6 mm | 80m(262ft) | 32m(105ft) | 16m(52ft) | 8m(26ft) | |||
| Intelligence | |||||||
| Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly | ||||||
| IVS | Tripwire; intrusion | ||||||
Video |
|||||||
| Video Compression | H.265/H.264H/MJPEG(Sub Stream) | ||||||
| Smart Codec | Support H.265+/H.264+ | ||||||
|
Video Frame Rate |
Main Stream: 4M(1 ~ 20fps)/3M (1 ~ 25/30fps) | ||||||
|
Sub Stream: D1(1 ~ 25/30fps) |
|
|
|||||
| Stream Capability | 2 streams | ||||||
| Resolution | 4M(2688×1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/VGA(640×480)/D1(704×576/704×480)/CIF(352×288/352×240) | ||||||
| Bit Rate Control | CBR/VBR | ||||||
| Video Bit Rate | H.265: 12K ~ 8448Kbps
H.264: 32K ~ 10240Kbps |
||||||
| Day/Night | Auto(ICR)/Color/B/W | ||||||
| BLC | BLC / HLC / WDR(120dB) | ||||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||
| Gain Control | Auto/Manual | ||||||
| Noise Reduction | 3D DNR | ||||||
| Motion Detection | OFF/ON (4 areas, rectangle) | ||||||
| Region of Interest (RoI) | Off / On (4 Zone) | ||||||
| Electronic Image Stabilization (EIS) | N/A | ||||||
| Smart IR | Yes | ||||||
| Digital Zoom | 16x | ||||||
| Flip | 0°/90°/180°/270° | ||||||
| Mirror | Off / On | ||||||
| Privacy Masking | Off / On (4 areas, rectangle) | ||||||
| Audio | |||||||
| Audio Compression | N/A | ||||||
| Alarm | |||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception | ||||||
Network |
|||||||
| Ethernet | RJ-45 (10/100 Base-T) | ||||||
| Protocol | HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP; NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS |
||||||
| Interoperability | ONVIF Profile S&G, API | ||||||
| Streaming Method | Unicast / Multicast | ||||||
| User/Host | 10 Users / 20 Users | ||||||
| Storage | NAS
Local PC for instant recording |
||||||
| Browser |
IE, Chrome, Firefox, Safari |
|
|
||||
| Management Software | Smart PSS; DSS; DMSS | ||||||
| Mobile Phone | IOS; Android | ||||||
| Certification | |||||||
| Certifications | CE (EN 60950:2000)
UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|
|
||||
| Power | |||||||
| Power Supply | DC12V, PoE(IEEE 802.3af)(Class 0) | ||||||
| Power Consumption | < 5.5W | ||||||
Environment |
|||||||
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||||
| Storage Temperature | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||||
| Protection Grade | IP67 | ||||||
| Structure | |||||||
| Casing |
Metal + plastic |
|
|
||||
| Dimensions | Φ70mm×164.7mm(2.76”x6.49”) | ||||||
| Net Weight | 0.38Kg(0.84lb) | ||||||
| Gross Weight | 0.44Kg(0.97lb) | ||||||
