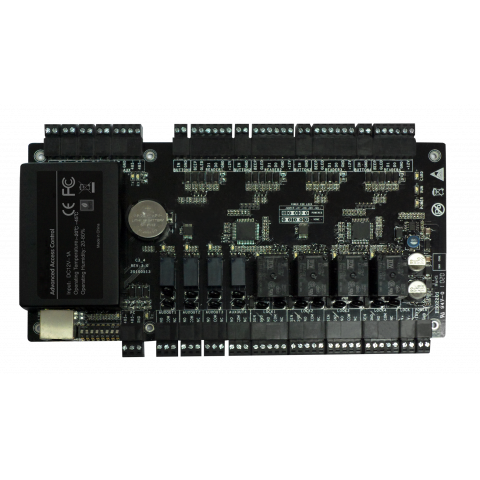

IP-based Door Access Control Panel


  • Choice of Readers
  • Lowest Total Cost of Ownership
  • More than Door Control
  • Communication
  • Capacity
  • Options
Number of Doors Controlled 1 Door
Number of Readers Supported 2
Types of Readers Supported 26-bit Wiegand, others upon request
Number of Inputs 2 (Exit Device and Door Status, AUX)
Number of Outputs 2 (1-Form C Relay for Lock and 1-Form C Relay for Aux Output)
Card Holders Capacity 30,000
Log Events Capacity 100,000
Weight 7.4lbs (3.35kg)
Communication TCP/IP and RS-485
Enclosure Powder Coated Aluminium
Mounting Wall Mount
Recommended Power Supply 12V DC, 1.5A
Dimensions (Bundle Only) 15 in x 3.15 in x 11 in
380mm (L) x 80mm (W) x 280mm (H)
Dimensions (Board Only) 5.7 in x 4.17 in
145mm x 106mm
