| Technical Specification | |||||
| Model | ASR1200D | ASR1200D-D | |||
| System | |||||
| Main Processor | 8 bit | ||||
| Read | |||||
| Read Format | 13.56MHz | 125KHz | |||
| Read Range | 6-8cm (max.) | ||||
| Reading Time | <0.1s | ||||
| Function | |||||
| Tamper Alarm | Yes | ||||
| Interface | |||||
| To Controller | RS485, Wiegand34 (Wiegand 26 optional) | ||||
| General | |||||
| LED Indicator | Yes | ||||
| Ingress Protection | IP65 | ||||
| Beep Tone | Buzzer | ||||
| Power Supply | 5-16V DC / 100mA/ 300mA/ 800mA | ||||
| Working Environment | -30°C-+60°C | ||||
| Working Humidity | ≤95% | ||||
| Dimension (W×D×H) | 135*47.5*16mm | ||||
| Weight | 0.18kg | ||||
ASR1200D ASR1200D-D

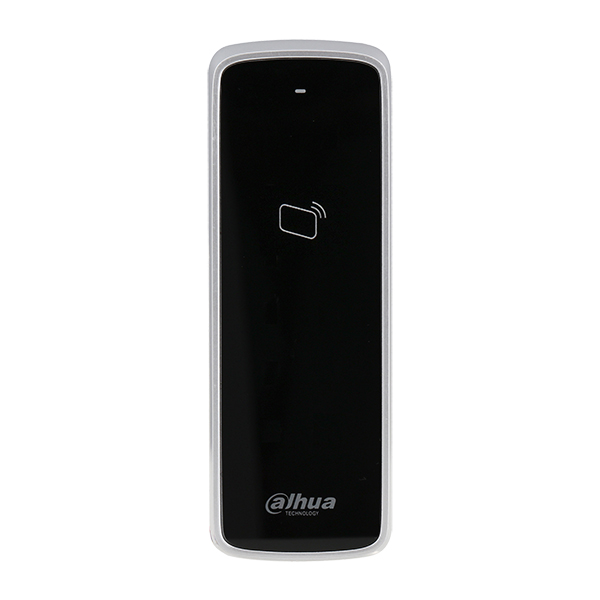

Slim Water-proof RFID Reader
Features:
- Support RS485, Wiegand34 protocol (Wiegand 26 optional)
- 13.56MHz(Mifare)
- 125KHz(EM-ID)
- Red and Blue LEDs
- Watch dog function ensure device free from halting
- Water-proof(Outdoor use)
- Surface/Flush mounted installation
