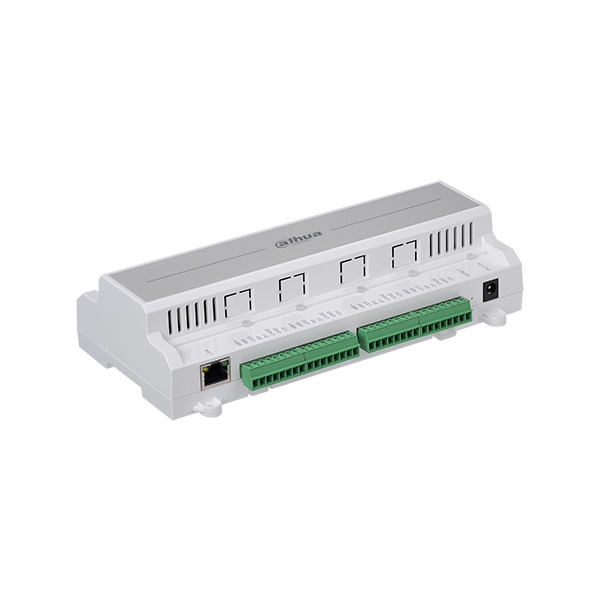

ASC1204B-S

Categories: , ,

Four Door two way Access Controller

Features:

  • Support 100,000 valid cards & 150,000 records
  • Support multiple cards
  • Support card, password, fingerprint and combination
  • TCP/IP interface to PC
  • Wiegand or RS-485 interface to readers(2/4 door)
  • Door time out alarm, intrusion alarm, duress alarm and tamper alarm
  • Anti-pass back, multi-door interlock, multi-card open
  • Support 128 efficient time and holiday schedules
  • Watch dog function ensure device free from halting
  • Surface mounted installation

Add to Enquiry List
System
Main Processor 32 Bit
Memory 16M
Input/Output Ports
Input Inputs x 9 (door sensor x 4, exit button x 4, alarm x 1)
Output Relay x 5 (door lock x 4, alarm x 1)
Reader Reader x 4
Capacity
Card holders/Events 100,000/150,000
Function
Access control Anti-pass back, Multi-interlock, Multi-card unlock)
User Management General, VIP, Guest, Patrol, Black list, Duress
Alarm Function Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm
Period Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period
Interface
To PC RJ45(10/100M)
To Reader Wiegand/ RS485
General
RTC Yes
Power Supply DC12V/1A
Working Environment -30°C~+60°C
Working Humidity ≤95%
Dimension(W×D×H)t 210*51*106mm
Weight 0.5Kg
Not available.
Type Download
Datasheet
User Manual – Quick Start Guide
User Manual
Drawings – Dimension
Drawings – Installation
