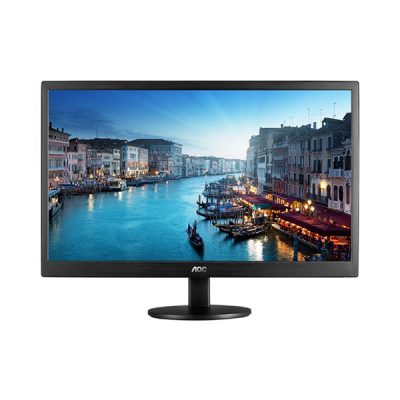

AOC 20″ E1 CCTV Series LED Monitor (1600×900) – TN Panel
| Specifications | |||||
| Monitor Size | 19.5 inch | ||||
| Resolution | 1600 x 900 | ||||
| Refresh Rate | 60Hz | ||||
| Response Time | 5ms | ||||
| Panel Type | TN | ||||
| Brightness | 250 | ||||
| Screen Detail | |||||
| Monitor Colour | Black | ||||
| Monitor Size | 19.5 inch | ||||
| Resolution | 1600 x 900 | ||||
| Refresh Rate | 60Hz | ||||
| Response Time | 5ms | ||||
| Panel Type | TN | ||||
| Low-blue Light | Yes | ||||
| Backlight | WLED | ||||
| Color SRGB Coverage | 99 | ||||
| FlickerFree | Yes | ||||
| Aspect Ratio | 16:9 | ||||
| Brightness | 250 | ||||
| Contrast (Dynamic) | 20M:1 | ||||
| Contrast (Static) | 1000:1 | ||||
| Pixel Pitch | 0.2712 | ||||
| Active Screen Area | 433.92 x 236.34 | ||||
| Viewing Angle (CR10) | 170/160º | ||||
| Colors | 16.7 Million | ||||
| Bezel Type | Normal | ||||
| Scanning Frequency | 30 -83kHz (H) 50 -76 Hz(V) | ||||
| Adobe RGB Coverage (%) | 73 | ||||
| OSD Languages | EN, FR, ES, PT, DE, IT, NL, SE, FI, PL, CZ, RU, KR, CN (T), CN (S), JP | ||||
| Hard Glass | 3H | ||||
| Connections | |||||
| Signal Input | HDMI 1.4 x 1, VGA | ||||
| Audio Input | Line in | ||||
| Audio Output | Headphone out (3.5mm) | ||||
| Features | |||||
| Curved Screen | Flat | ||||
| What’s In The Box | |||||
| VGA Cable | 1.8m | ||||
| Sustainability | |||||
| RoHS | Yes | ||||
| Ergonomics | |||||
| Tilt | -3.5° ~ 21.5° | ||||
| Base Removal | Yes | ||||
| Vesa | 100 x 100 | ||||
| Power | |||||
| Power Supply | Internal | ||||
| Power Source | 100 – 240V 50/60Hz | ||||
| Energy Class | A | ||||
| Power Consumption On | 14 watt | ||||
| Power Consumption Standby | 0.5 watt | ||||
| Dimensions | |||||
| Product Dimensions incl Base (mm x mm x mm) |
18.17 x 14.93 x 7.85 in | ||||
| Carton Dimensions (mm x mm x mm) |
20.51 x 14.49 x 5.51 in | ||||
| Net Weight excl Package kg | 5.18 | ||||
| Gross Weight incl Package kg | 7.63 | ||||
| Warranty | |||||
| Warranty Period | 3 Years | ||||
| MTBF | 50,000 hours | ||||
| Regulations | |||||
| Rohs Complaint | Yes | ||||
